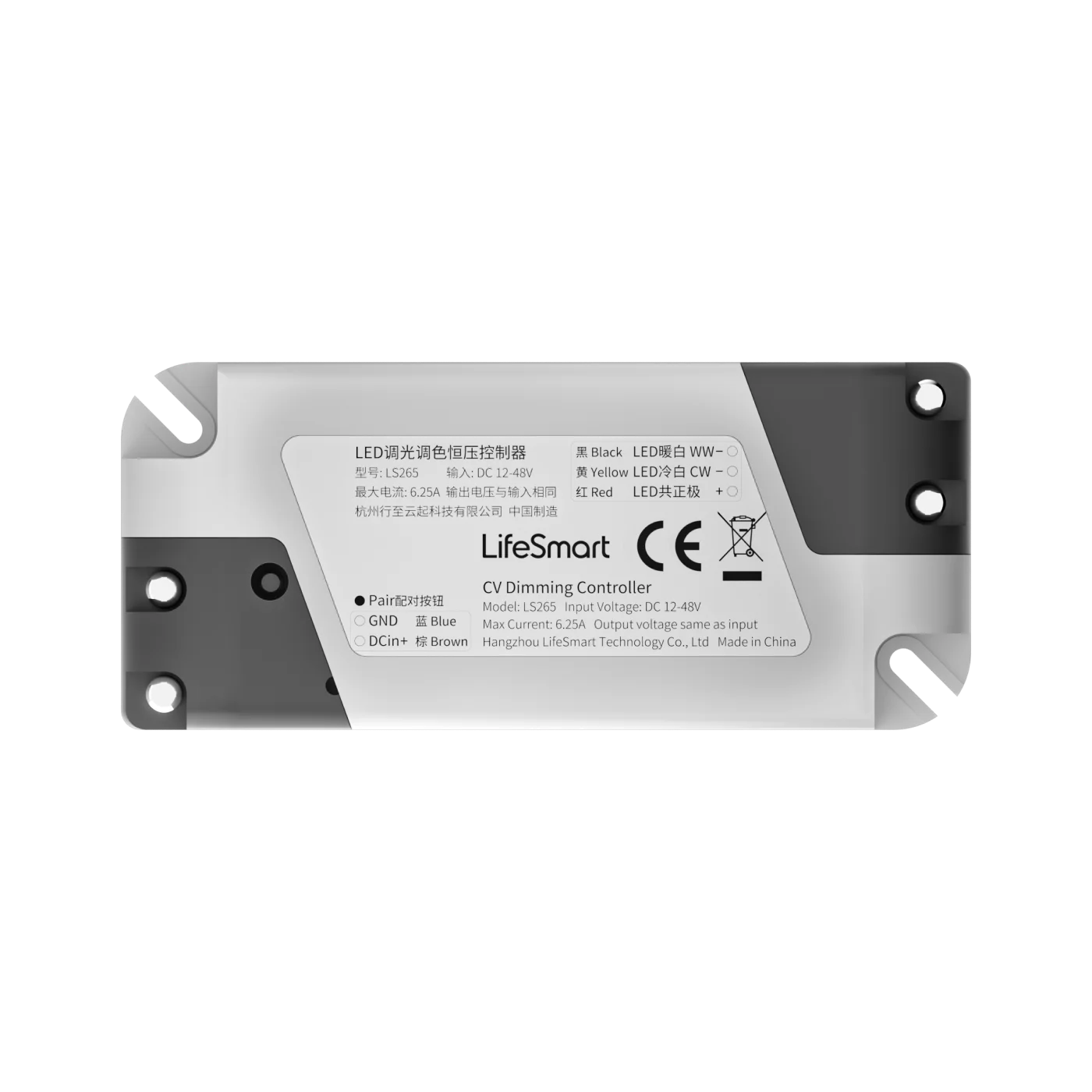

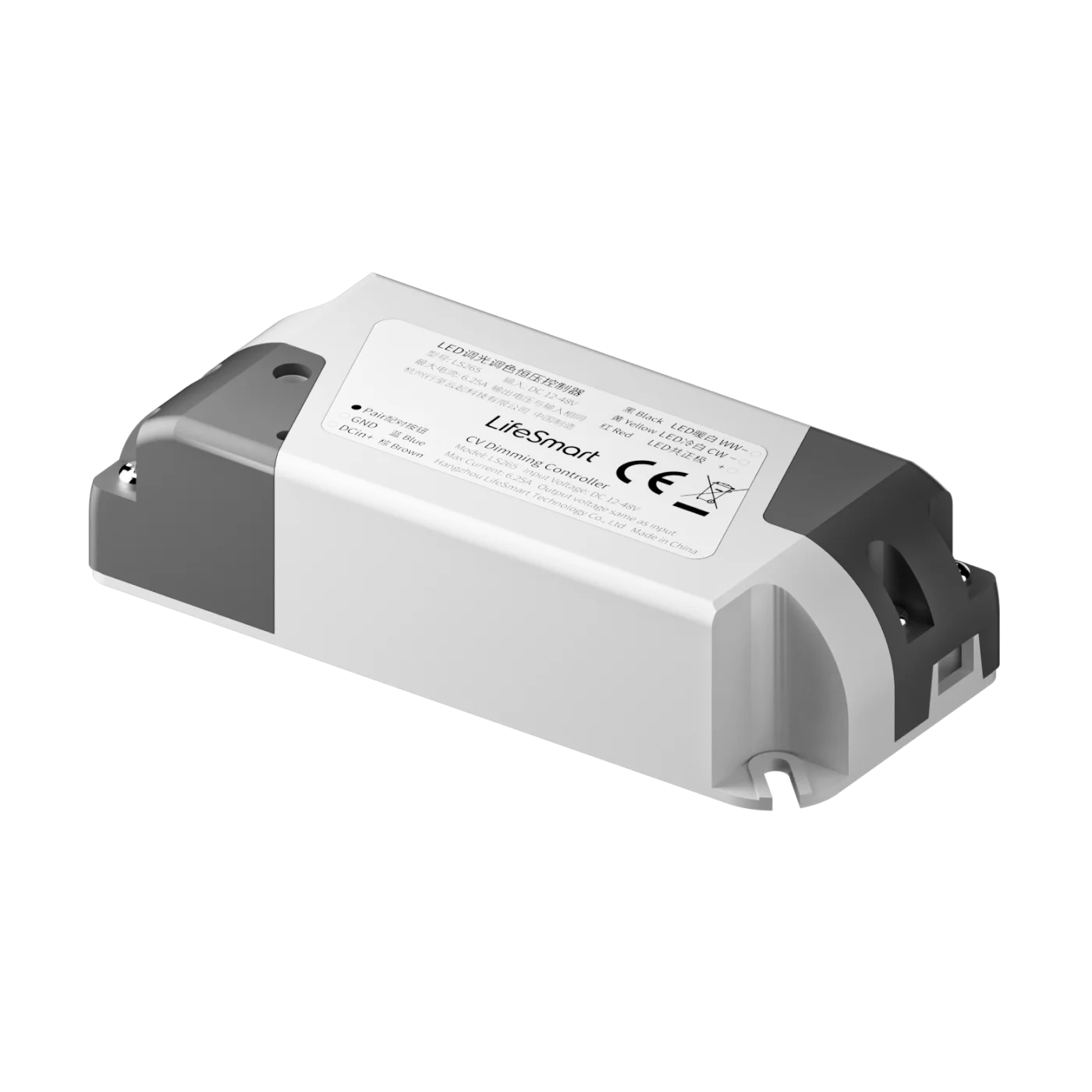

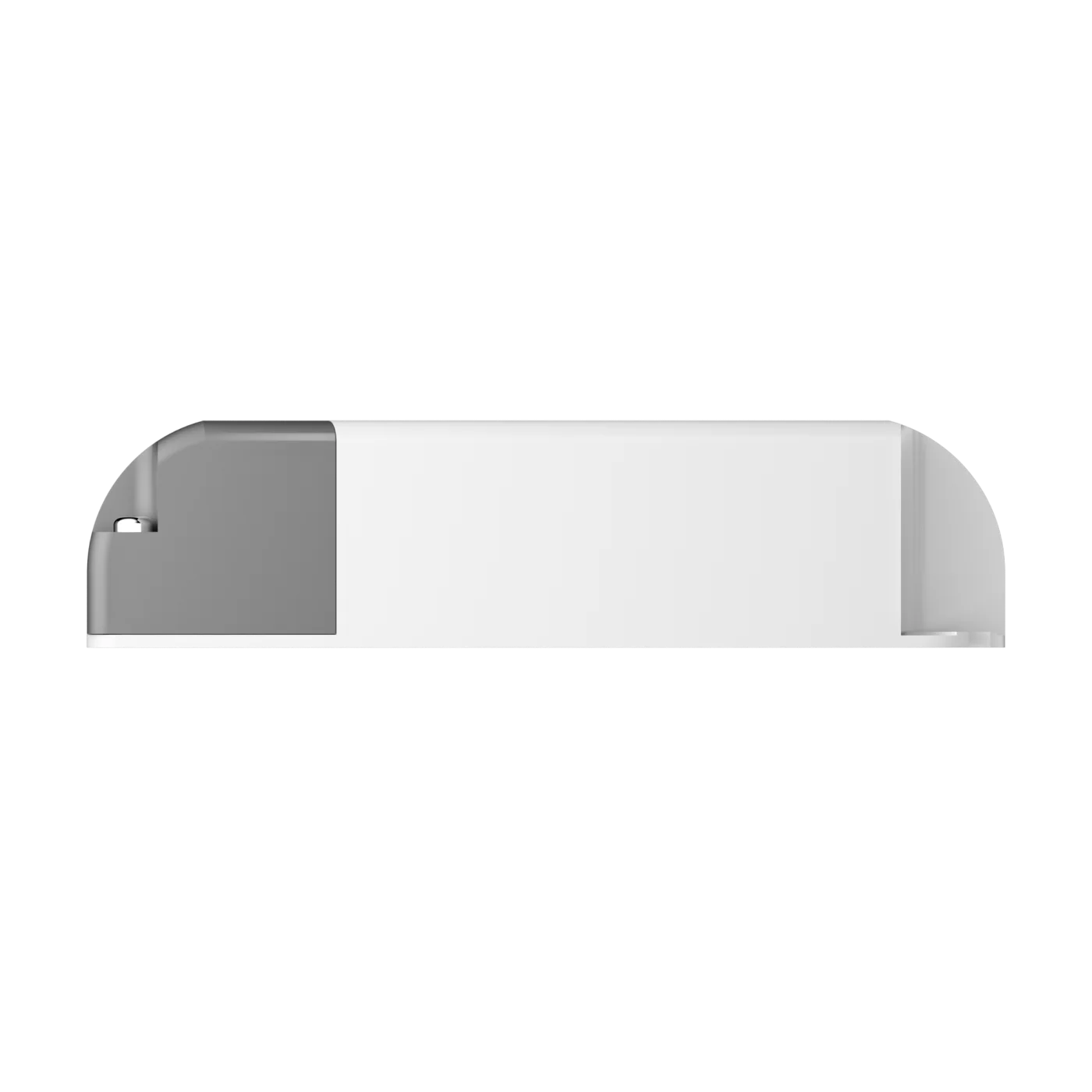

CV Dimming Controller (CoSS)

LED Dimming Controller

LightingDimming
LED color and constant voltage controller with built-in CoSS dimming module for easy, precise control. Supports PWM stepless dimming (1/10,000 depth) and 12V–48V input/output for versatile LED applications.
Multiple Pairing Methods
Supports multiple ways to connect devices
Smooth PWM Dimming
PWM dimming with 1/10,000 depth
Wide Voltage Support
Works with 12V–48V systems seamlessly
Voice Assistant Compatible
Control via HomeKit, Alexa, or Google Assistant

Specifications

Radio Protocol
CoSS
Signal Range
100m (open field)
Casing
PC
Dimensions
88*38*22mm
Operating Temperature
-5~45℃
Operating Humidity
0~90%
Input Voltage
DC12-48V
Output Voltage
Same as input voltage
Port
DCin(+)、GND、LED+、LED-C、LED-W
Maximum Load Current
6.25A
Static Power
<0.2W
