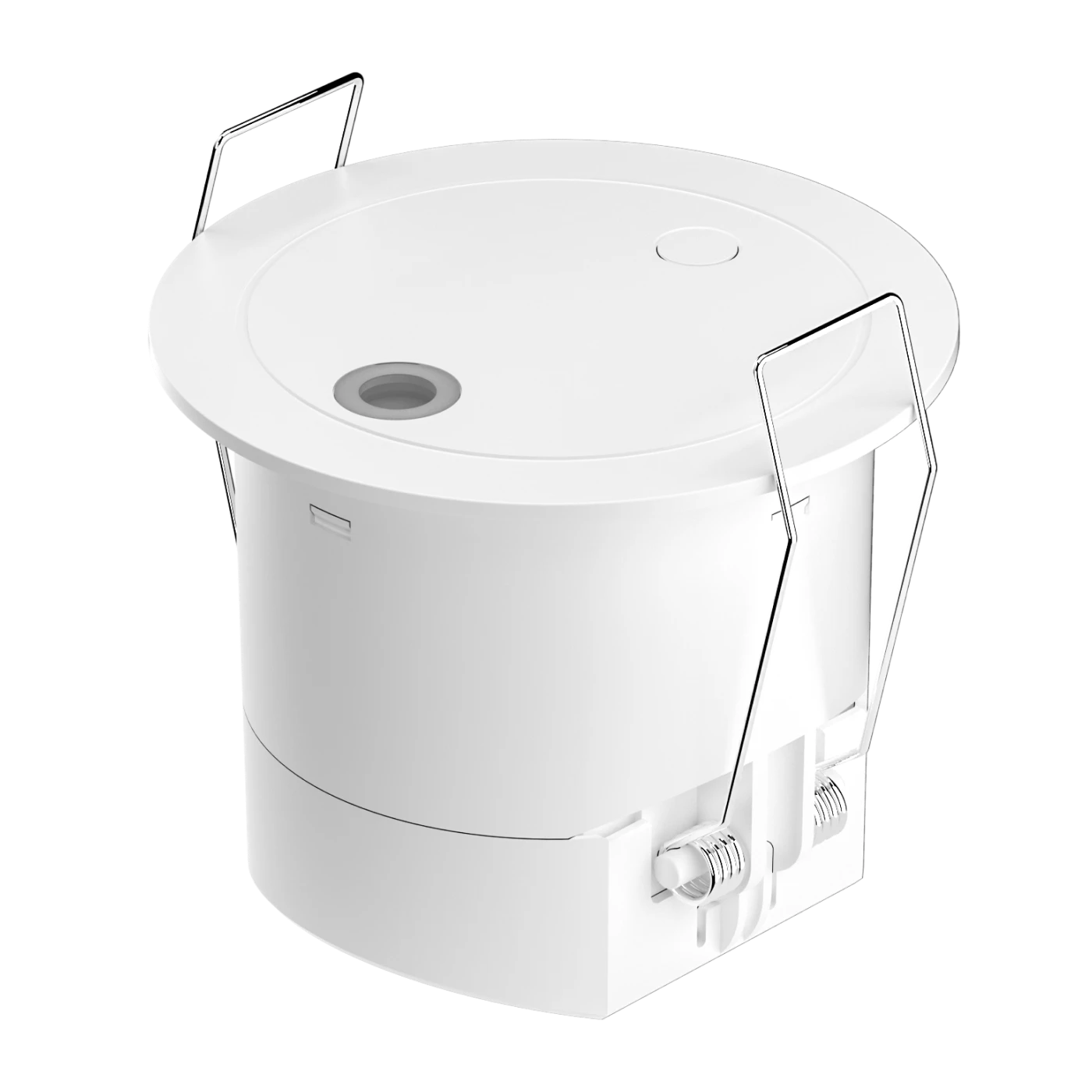

Human Presence Sensor (Radar Detector, ZigBee)

Subtle Presence Detection

SensorScene
Human Presence Sensor (ZigBee) uses advanced millimeter-wave Doppler radar to detect human motion and presence with high sensitivity. It wirelessly reports to the gateway for smart scene activation, ideal for homes, hotels, and offices.
Adjustable Detection Range
Three sensitivity levels: high, medium, low
Smart Interference Blocking
Automatically blocks indoor interference
Customizable Delay Settings
Delay time adjustable from 30s to 30min

Specifications

Radio Protocol
CoSS
Signal Range
100m
Casing
ABS
Dimensions
Φ65xΦ52x49.5mm
Operating Temperature
0°C~50°C
Operating Humidity
-25℃~+80℃
Operating Voltage
AC 110V-240V 50/60Hz
Mounting Height
2.5-4m
Detection
0-4m,set via app
Hold Time
3-7200s,set via app
Detection Range (Radius) (Note 3)
Big motion: 3-4m, Minor motion: 2.5-3.5m, Breathing: 2.5-3.5m
Cut-out Size
Cut a hole of 55mm on the ceiling
Installation
Flush Mounted
